Metrology reference fixture

Metrology reference fixture

Regular price $1,995.00 USD
Regular price Sale price $1,995.00 USD
Sale Sold out


Reference frames or fixtures are perfect for any kind of optical measurement system to generate a stable target frame around the scanned part for minimizing the need of reference targets on the part. The setup is adaptable to the part size and the available base fixation (M6). The reference fixture is also applicable to existing rotation tables and screw plates with threaded M6 inserts. The reference stands could also be used as stand-alone target carriers for individual setups.

  • Made of anodized aluminum
  • Various heights of reference frames available
  • Screwable (M6) – fastening with thumb screw

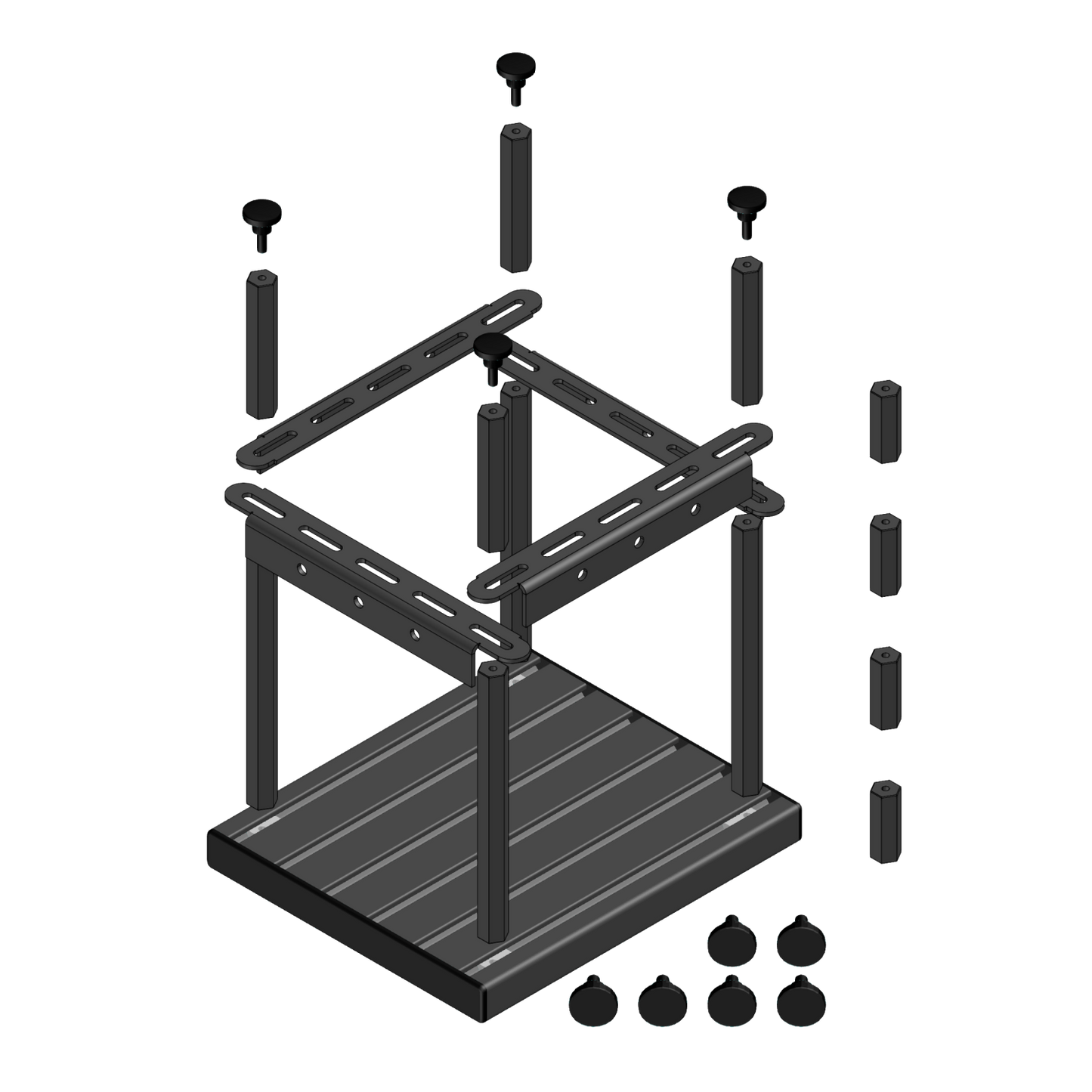

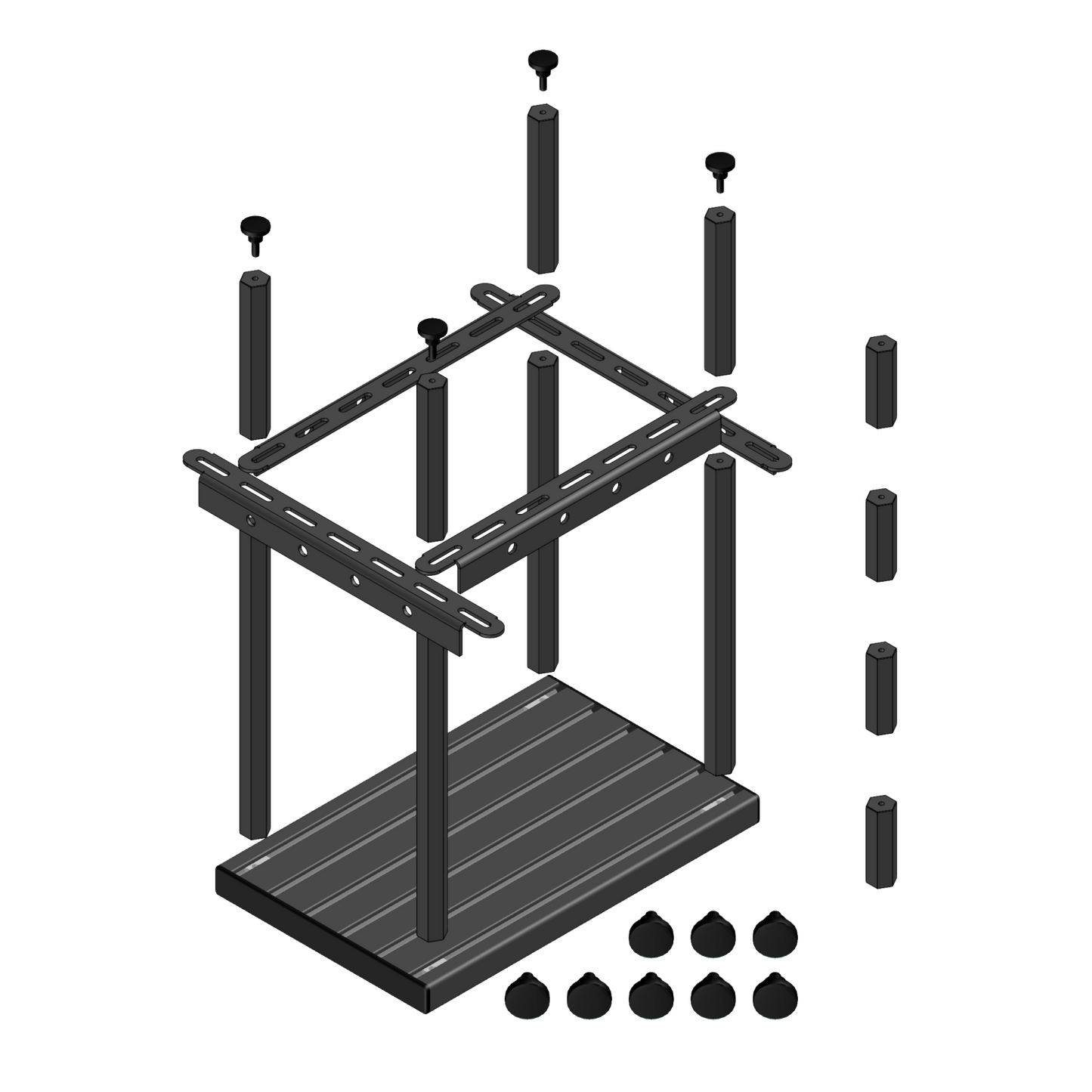

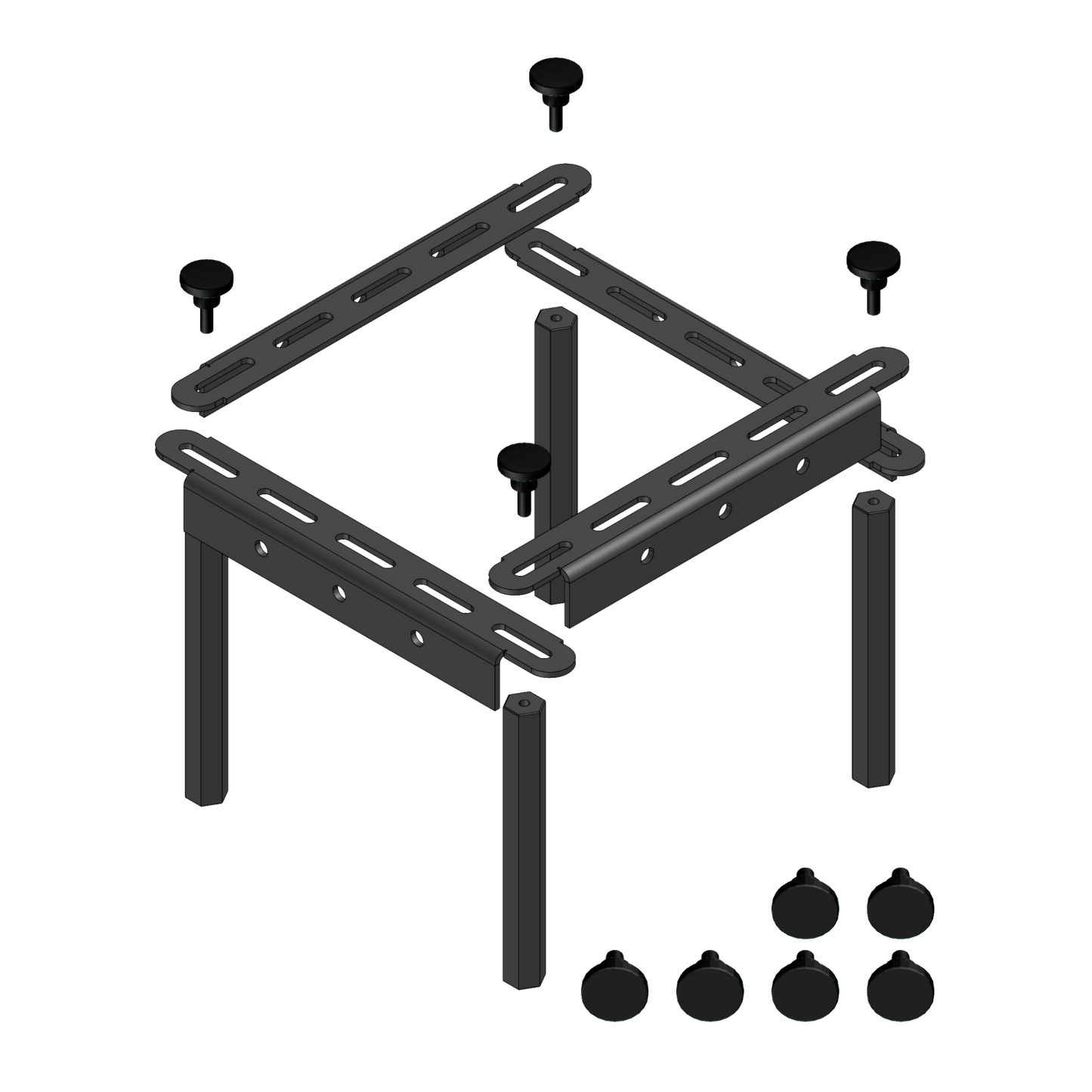

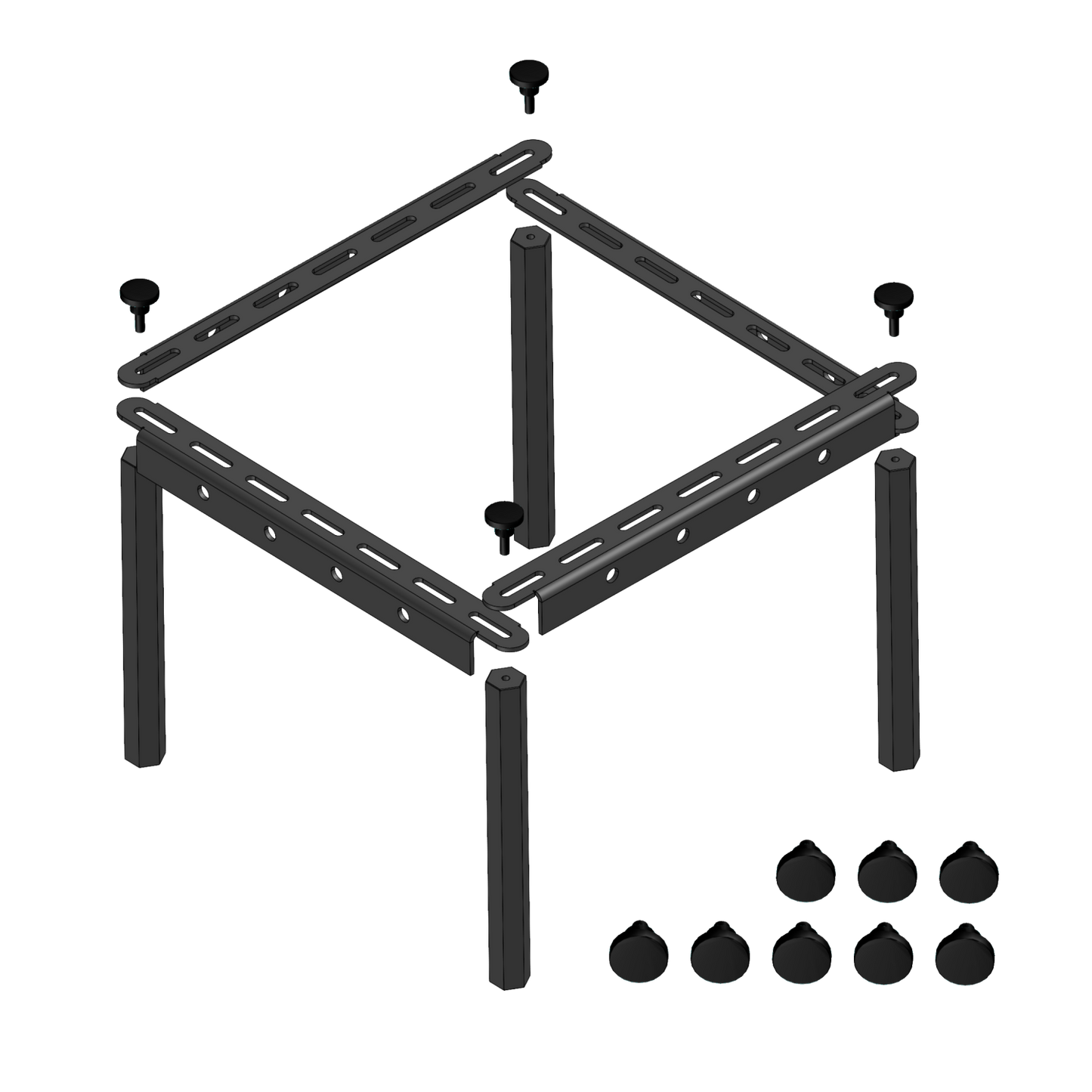

  • Tilted stand mount with slotted holes for individual setup
  • High quality transport case with individual foam cut
  • Target carrier for coded targets (Magnetic/adhesive)
  • Designed for parts up to 200 mm or 350 mm
  • 200 mm version is ideal for target size ≤ 6.0 mm
  • 350 mm version is ideal for target size ≤ 3.0 mm
  • Optional extension kits

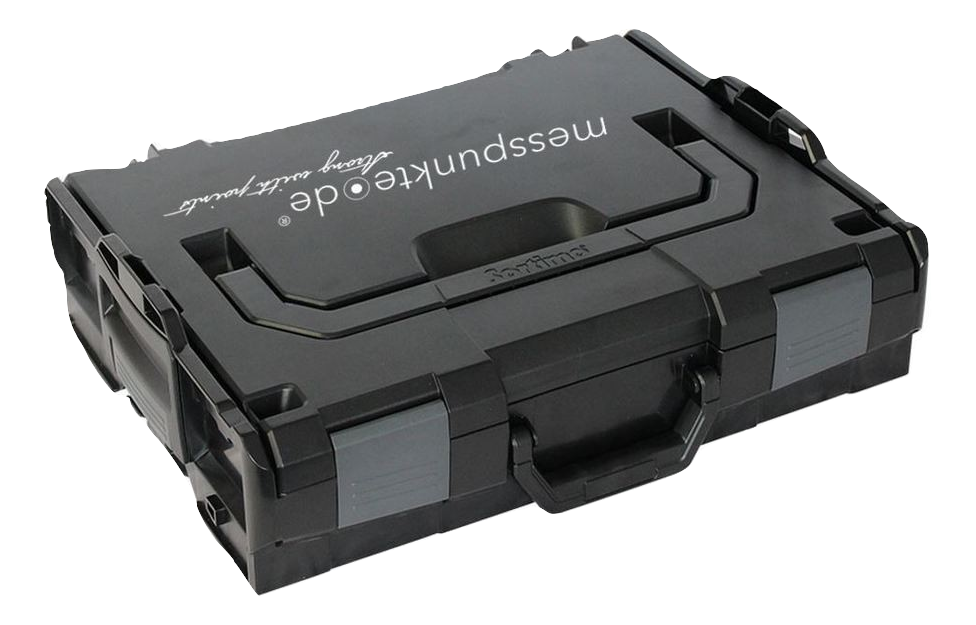

  • Protecting case included
