Premium 3D Scanning Targets

Messpunkte reference targets for industrial 3D scanning and optical metrology. Choose the right diameter, reflectivity and mounting method for your scanner.

Shop reflective targets Shop white targets

Not sure which markers your scanner uses? Find your model.

Find the right target format.

Start with your scanner's reference type. Then choose the target size, adhesive and mounting format for the job. Each product below links directly to the relevant listing or variant.

High-reflectivity targets

Common for handheld scanners including the Creaform HandySCAN family and ZEISS T-SCAN hawk. Choose the diameter and adhesive recognized by your scanner.

All high-reflectivity targets ↗

High-reflectivity target rolls

4,000-dot rolls for repeat scanning and high-volume marker use.

3 mm roll$159.0012.30.62.12 6 mm roll$159.0012.60.100.12

6 mm high-reflectivity sheets

General-purpose reflective sheets for compatible handheld laser scanners.

Light adhesive$119.0012.60.100.01 Standard adhesive$119.0012.60.100.02 Strong adhesive$119.0012.60.100.03

3 mm high-reflectivity sheets

Compact markers for smaller features where 3 mm recognition is supported.

Light adhesive$119.0012.30.62.01 Standard adhesive$119.0012.30.62.02 Strong adhesive$119.0012.30.62.03

12 mm high-reflectivity sheets

Larger reference markers for supported tracking and wide-area workflows.

Light adhesive$139.0012.120.190.01 Standard adhesive$139.0012.120.190.02

White reference targets

Common for structured-light scanners such as the ZEISS ATOS family and applicable photogrammetry workflows. Check target diameter against the sensor's measuring volume.

All white targets ↗

0.8 mm white target sheets

Premium matte sheets for compatible fine measuring volumes.

Standard adhesive$119.0001.08.27.2 Strong adhesive$119.0001.08.27.3

1.5 mm white target sheets

Premium matte sheets for medium-field structured-light scanning.

Standard adhesive$119.0001.15.37.2 Strong adhesive$119.0001.15.37.3

3 mm white target sheets

Larger premium matte references for compatible wider measuring fields.

Standard adhesive$119.0001.30.70.2 Strong adhesive$119.0001.30.70.3

Wide-format white target rolls

Uncoated roll stock. Different from premium matte sheet finish.

1.5 mm roll$119.0001.15.37.11 3 mm roll$119.0001.30.70.11 5 mm roll$119.0001.50.100.11

Reusable targets and holders

Repositionable references, magnetic holders and reusable mounting tools for repeat inspections.

Read the reuse guide ↗

Multi-face holders

Magnetic hex target bases

M, L and XL · verify sizes and availability

Check availabilityView details ↗

Magnetic / reusable

6 mm magnetic markers

200 reusable magnetic reflective references

$159.00View variant ↗

Repositionable

6 mm glueless targets

210 repositionable reflective references

$139.00View variant ↗

Reusable mounting

Reusable target strips

Removable carriers; target dots sold separately

$69.50View variant ↗

Accessories and specialty targets

Reference fixtures, coded markers, placement tools and cleanup accessories.

Browse the complete catalog ↗

Coded references

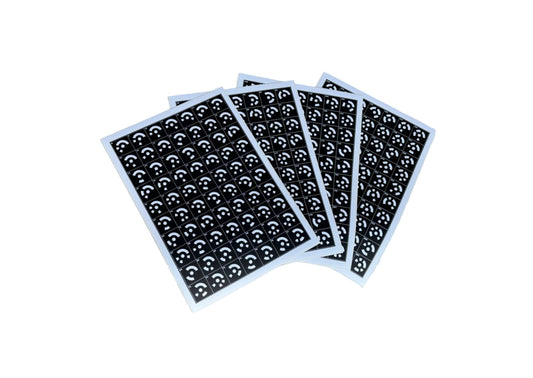

Coded reference targets

Special patterns for compatible tracking systems

$139.00View variant ↗

Handling tool

Target removal scraper

Plastic blade for spent adhesive dots

$19.50View variant ↗

Application tool

Precision tweezers

Controlled placement on tight features

$29.50View variant ↗

Messpunkte endless strip with prearranged reflective 6 mm target pattern

Prearranged reflective pattern

6 mm target pattern strip

30 m continuous strip with approximately 500 irregularly distributed reflective markers.

$139.00View product ↗

Find targets for your scanner

Choose the manufacturer, then your scanner or scan mode. We'll show compatible reference formats and link to the full scanner guide.

View the complete scanner guide ↗

1. Scanner brand

2. Scanner model / mode

Start with your scanner brand. If your configuration is not listed, use the detailed compatibility guide or contact us with your model and scanning mode.

Common scanner and target combinations

These reference sizes are starting points, not interchangeable across every scanner generation or scanning mode. Use the linked guide to confirm your setup.

Scanner / mode	Target starting point	Scanner-specific guidance
Creaform HandySCAN family	6 mm high-reflectivity sheets	HandySCAN model and format guide ↗
Creaform HandySCAN MAX (supported modes)	12 mm high-reflectivity sheets	Confirm MAX mode ↗
Creaform MetraSCAN / C-Track	12 mm, when part targets are required	Check tracking configuration ↗
ZEISS T-SCAN hawk 1	6 mm high-reflectivity sheets	Original hawk guide ↗
ZEISS T-SCAN hawk 2	6 mm; 3 mm where supported	Hawk 2 tracking modes ↗
ZEISS ATOS Q / ATOS 5	White dots by measuring volume	0.4–3 mm measuring-volume guide ↗
SHINING 3D FreeScan UE Pro2	6 mm high-reflectivity sheets	Check mode-specific minimum ↗
SHINING 3D FreeScan Combo (laser)	3 mm high-reflectivity sheets	Laser versus infrared ↗
Hexagon MARVELSCAN	6 mm; other sizes by mode	Marker and target-free options ↗
Hexagon AICON structured light	White dots by sensor calibration	Structured-light guide ↗
SCANTECH KSCAN / SIMSCAN	6 mm for applicable configurations	Confirm generation and model ↗
SCANTECH TrackScan / NimbleTrack	12 mm only where references required	Verify marker-free setup ↗
Artec Point (original)	6 mm fast / 3 mm fine	Point vs Point II ↗

For product-level selection and mounting methods, read the full scanner compatibility guide. Do not infer compatibility from diameter alone.

Check the specification.

Reference data sheets and supported-sensor information for the targets supplied by Messpunkte. Confirm product and scanner compatibility before purchasing.

Retroreflective target data sheetPDF / specification White target data sheetPDF / specification Supported sensors guidePDF / sensor reference Compatibility by scanner modelOnline size and material guide

Before you order.

Read the full target selection guide ↗

Are white and reflective targets interchangeable?

No. Different systems recognize different reference markers. Use the finish and diameter required by your scanner.

Which marker diameter should I buy?

Marker diameter depends on the scanner, its field of view and the measurement setup. Compare target sizes.

How many markers do I need?

The camera needs a recognizable irregular pattern throughout the scan. Visible overlap is more important than a fixed sticker count. See placement guidance.

Can I reuse target dots?

Adhesive dots are generally single-use. Magnetic and removable carrier options may suit repetitive setups when compatible. Read the reuse guide.

Can targets affect delicate surfaces?

Adhesive and removal suitability depend on the coating and substrate. Test an inconspicuous area before use on painted or sensitive parts.
