3D Scanning Spray | ATTBLIME

Choose the right ATTBLIME matting spray for optical 3D scanning. Temporary sublimating and semi-permanent coatings help prepare reflective, transparent or low-contrast parts for measurement.

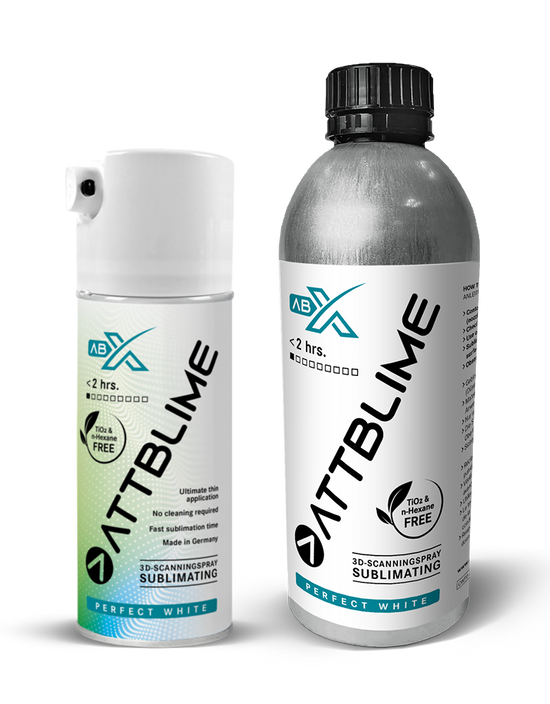

  • ABX: a short-duration sublimating option.
  • AB2: typical sublimation of 2–4 hours.

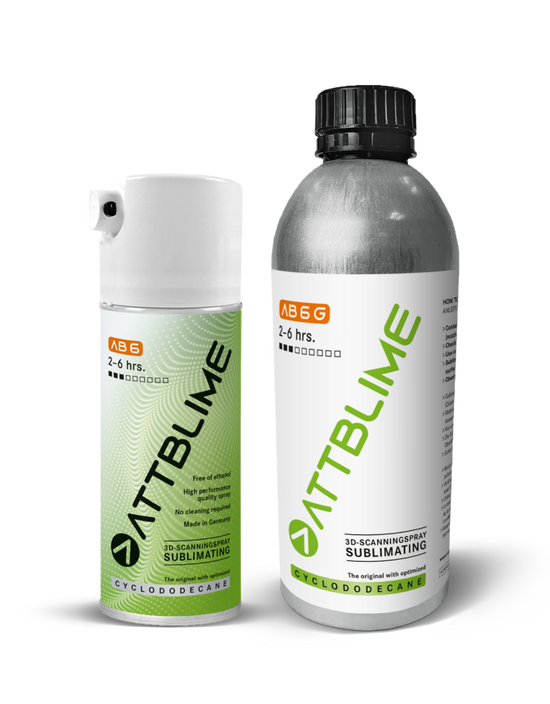

  • AB6: typical sublimation of 6–10 hours.
  • ABP: semi-permanent white or gray coating; clean off after use.

Shop 400 ml aerosol sprays or bulk containers. Actual sublimation depends on coating thickness and environmental conditions. Confirm material compatibility and follow product instructions.

ATTBLIME Scanning Spray Comparison Table

What is 3D Scanning Spray

3D Scanning Spray is used to treat the surface of parts before 3D scanning. Older methods would leave hard-to-clean residues. ATTBLIME developed a new generation sublimating scanning spray that does not leave residue, and as opposed to other scanning sprays available, does not contain titanium dioxide (TiO2), n-hexane or adamantine.

Sublimation technology

The raw material cyclododecane (CDC) contained in the sublimating scanning sprays does not bioaccumulate in water organisms and is therefore absolutely harmless for humans and for our environment. Due to its composition, CDC is much more economical than alternative products and does not require labelling according to the GHS “Globally Harmonised System”. According to SGS Institut Fresenius, no cyclododecane could be detected 24 hours after an application of AB2 or AB6 and 96 hours after an application of AB24. Visible contamination is no longer present. The pigments contained in the permanent scanning spray ABP are based on renewable natural raw materials. The versions ATTBLIME ABX, AB2, AB6 and ABP are also available in bulk container form of 1,000ml or 5,000ml.

Technical Data Sheets

MSDS / SDS

Spray head change system

The spray cans are equipped with the unique SHC system (spray head change system), which allows to control the film thicknesses and sublimation times.

  • Round spray head for high definition details and shorter sublimation times
  • Wide spray head for large area applications and longer sublimation times
  • Extended tube spray head for hard to reach areas and high resolution details
